Round buffer | Type A, external threads on both sides

Round bearing and buffer
Round buffer
Type A, external threads on both sides
Type B, external thread on one side, internal thread on the other
Type C, internal threads on both sides
Stop buffer
Type D, external thread on one side
Type E, internal thread on one side
Tapered buffers
Type A/F, external threads on both sides
Type B/F, external thread on one side, internal thread on the other
Type C/F, internal threads on both sides

Round buffers for vibration damping

Type A round buffers (external thread on both sides) are composite bodies made of rubber and metal sheets and are used for vibration insulation and structure-borne sound insulation. They effectively reduce the transmission of mechanical and/or acoustic vibrations. They are available from our shop in different sizes.

Media

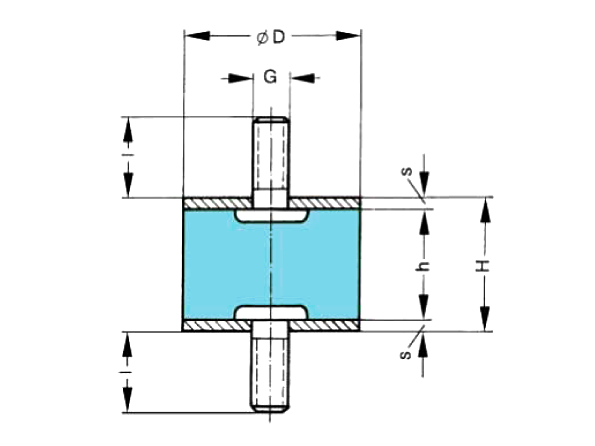

Round buffer both sides external thread

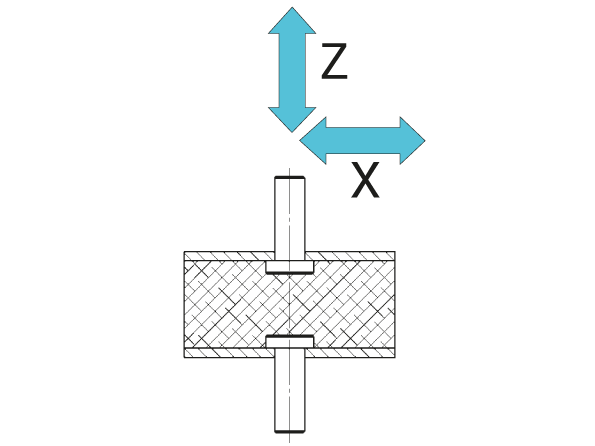

Load directions
Item no.
  		External ∅
mm 		Height
mm 		Shore-hardness
° Sh A 		Detail
  		Color
  		Stock
  		quantity



Vibration damper with M 10 external thread
Vibration isolation round buffer
Round buffer external thread on both sides
Vibrating-metal vibration control

Frequently asked questions (FAQ)

Round buffers can be subjected to pressure, thrust or torsion, but never to tension. In general, the compressive stress should be chosen, this guarantees a long life of the round buffer.
As there is no fixed connection, no metallic contact between the components, the transmission of mechanical or acoustic vibrations is reduced or even eliminated.
Vibrations and structure-borne noise are vibrations and can be positively influenced by applying the following basic principles of vibration reduction or by design measures. Vibration insulation, structure-borne sound insulation and impact insulation design measures
Vibration damping is the conversion of mechanical kinetic energy of a vibrating system into another form of energy, e.g. heat.
